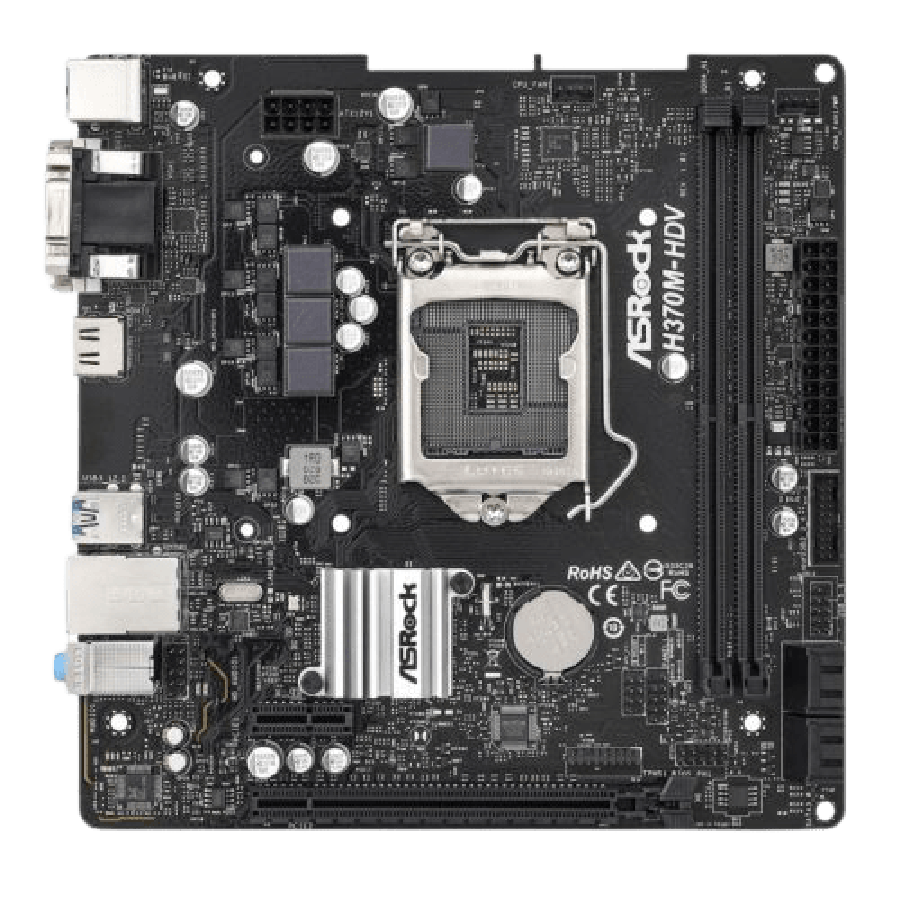

Asrock H370M-HDV, Intel H370, 1151, Micro ATX, 2 DDR4, VGA, DVI, HDMI

Product Details

Type	Desktop
Socket	Intel 1151 - Coffee Lake
Chipset	Intel H370
Maximum Memory	64GB DDR4
RAM Speed	2666 / 2400 / 2133 MHz
Memory Type	DDR4 (Dual Channel)
Storage	4 x SATA III
Graphics	Supports Intel HD Graphics
Multi GPU Supports	-
Graphics Port	1 x VGA 1 x DVI-D 1 x HDMI
Audio	7.1 CH HD Audio (Realtek 887/897 Audio Codec)
USB Port Supported	4 x USB 3.2 Gen1 (2 at back, 2 at mid-board) 6 x USB 2.0 (4 at back, 2 at mid-board)
Internal I/O connectors	1 x TPM 1 x Chassis Intrusion and Speaker 1 x CPU Fan 1 x Chassis/Water Pump Fan 1 x 24 pin ATX 1 x 8 pin 12V 1 x Front Audio 1 x USB 2.0 1 x USB 3.2 Gen1
Back Panel I/o Ports	1 x PS/2 Mouse/Keyboard 1 x D-Sub 1 x DVI-D 1 x HDMI 4 x USB 2.0 2 x USB 3.2 Gen1 1 x RJ-45 LAN HD Audio Jacks
PCL Express	1 x PCIe 3.0 x16 1 x PCIe 3.0 x1
LAN	GB LAN
Package Weight	0.6900 kg
Warranty	3 Years
Condition	New

Supports 9th and 8th Gen Intel® Core™ Processors
4 Power Phase design
2 DIMMs, Up to DDR4 2666 MHz
1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Graphics Output Options: D-Sub, DVI-D, HDMI
7.1 CH HD Audio (Realtek 887/897 Audio Codec)
4 x SATA3
4 x USB 3.2 Gen1 (2 Front, 2 Rear)
6 x USB 2.0 (2 Front, 4 Rear)
Realtek Gigabit LAN

4 x USB3.2 Gen1

Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen1 technology advances the data transfer rate up to 5Gb/s. ASRock provides 4 x USB 3.2 Gen1 ports onboard allows you to have a stunning data transfer experience.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

HEVC 10-bit Decoding/Encoding

Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.

Super Alloy Motherboard

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Triple Monitor

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Manufacturer	Asrock
Color	No
Graphics Processor	Intel
Motherboard Form Factor	Micro ATX
Chipset	Intel H370
Motherboard Type	Desktop
Maximum Memory	64GB
Processor Socket	1151 - Coffee Lake
RAM Technology	DDR4 (Dual Channel)
RAM Slots	2 X DIMM
Condition	Brand New
Refurbished	No
