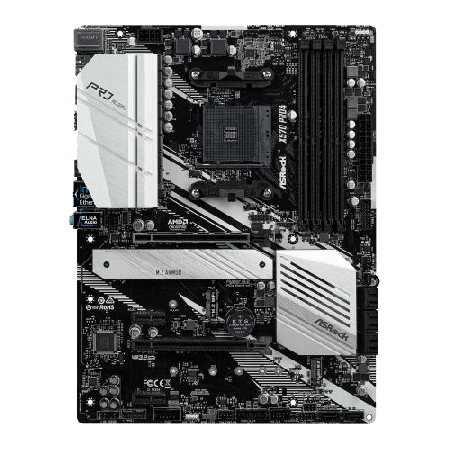

Asrock X570 PRO4 AM4, AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, RGB Lighting

  1. Home
  2. Asrock X570 PRO4 AM4, AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, RGB Lighting

  • Asrock X570 PRO4 AM4, AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, RGB Lighting

  • SKU: X570 PRO 4
  • EAN: 4717677338874
  • Type: Desktop
  • Socket: AM4
  • Chipset: AMD X570
  • Maximum Memory: 128GB
  • Integrated AMD Radeon Vega Series
  • 3 Years Warranty
$303.30
Out of Stock
    • SHARE:
    •
    •
    •
    •   TrustPilot
    WHY BUY WITH SAFEPCDIRECT ?
    Certificate 1
    Certificate 2
    Certificate 3
    Certificate 4

    Related Products

     Product Details:



    Type
    		Desktop
    SocketAM4
    ChipsetAMD X570
    Maximum Memory128GB
    RAM Speed

    AMD Ryzen series CPUs (Matisse)
    4066+(OC)/3466(OC)/3200/2933/2667/2400/2133

    AMD Ryzen series CPUs (Picasso)
    3466+(OC)/3200(OC)/2933/ 2667/2400/2133

    Memory TypeDDR4 (Dual Channel)
    Storage8 x SATA III
    1 x Hyper M.2 (2230/2242/2260/2280/22110) - PCIe
    1 x Hyper M.2 (2230/2242/2260/2280/22110) - SATA & PCIe
    PCI ExpressAMD Ryzen series CPUs (Matisse)
    2 x PCI Express 4.0 x16 Slots

    AMD Ryzen series CPUs (Pinnacle Ridge)
    2 x PCI Express 3.0 x16 Slots

    AMD Ryzen series CPUs (Picasso)
    2 x PCI Express 3.0 x16 Slots
    GraphicsMD Radeon Vega Series Graphics in Ryzen Series APU
    Multi GPU SupportsSupports AMD Quad CrossFireX and CrossFireX
    Graphics Port1 x HDMI
    1 x DisplayPort USB 1.2
    Audio
    		7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
    USB Port Supports2 x USB 3.2 Gen2 Type-A (at back), 2 x USB 2.0 (at mid-board)
    10 x USB 3.2 Gen1 (6 at back 4 at mid)
    Internal I/O connectors1 x COM Port
    1 x SPI TPM
    1 x Power LED and Speaker
    2 x RGB LED
    1 x Addressable LED
    1 x CPU Fan
    1 x CPU/Water Pump Fan
    3 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Audio
    1 x AMD LED Fan USB
    1 x Thunderbolt AIC
    1 x USB 2.0
    2 x USB 3.2 Gen1
    Back Panel I/o Ports3 x Antenna
    1 x PS/2 Mouse/Keyboard
    1 x HDMI
    1 x DisplayPort 1.2
    1 x USB 3.2 Gen2 Type-A
    1 x USB 3.2 Gen2 Type-C
    6 x USB 3.2 Gen1
    1 x RJ-45 LAN
    HD Audio Jacks
    WirelessWi-Fi with MU-MIMO 802.11 a/b/g/n/ac
    Supports dual frequency band 2.4/5 GHz
    Up to 1.73Gbps transfer speed
    Bluetooth v5.0
    LANDual GB LAN
    AccessoriesUsers manual
    I/O Shield , Support CD
    2 x SATA Data Cables
    3 x Screws for M.2 Sockets
    1 x Standoff for M.2 Socket
    Package Weight1.7500 kg
    Warranty3 Years
    Condition New



    EVOLUTIONARY X570 MOTHERBOARDS: Your PC Transformed
    Style . More reliable. Design that delivers.


    Steel Slot with New-Gen PCI Express 4.0
    The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.


    Dual Hyper M.2 For SSD
    Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.


    Full Coverage M.2 Heatsink
    A massive full coverage M.2 heatsink that is able to dissipate heat efficiently to ensure your high speed M.2 SSD always working at its best.


    Rule your Own Lighting Way - Polychrome RGB
    This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.


    IO Power Phase Design
    Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.


    Dual USB 3.2 Gen2 (Type-A + Type-C)
    This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.


    Intel® LAN
    Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!



    XXL Aluminum Alloy Heatsink

    Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

    Premium 50A Power Choke
    Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

    Sapphire Black PCB
    Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

    High Density Glass Fabric PCB
    High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

    2oz Copper PCB
    Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.


    M.2 (KEY E) For WiFi
    Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.


    ELNA Audio Caps
    Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.


    Full Spike Protection
    Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.


    Live Update & APP Shop
    ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

    • Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
    • 10 Power Phase Design
    • Supports DDR4 4066+ (OC)
    • 2 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
    • AMD Quad CrossFireX™ and CrossFireX™
    • Graphics Output Options: HDMI, DisplayPort
    • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps
    • 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3),
    • 1 Hyper M.2 (PCIe Gen4 x4)
    • 2 USB 3.2 Gen2 (Rear Type A+C), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
    • Intel® Gigabit LAN
    • ASRock Polychrome SYNC
    ManufacturerAsrock
    ColorNo
    Graphics ProcessorAMD
    Motherboard Form FactorATX
    ChipsetAMD X570
    Motherboard TypeDesktop
    Maximum Memory128GB
    Processor SocketSocket AM4
    RAM TechnologyDDR4 (Dual Channel)
    RAM Slots4 X DIMM
    ConditionBrand New
    RefurbishedNo
