| Type | Mesh Wi-Fi System |
| Connectivity | Wireless |
| Max Wireless Transfer Rate | 4804 Mbps |
| Max Wired Transfer Rate | 10/100/1000 Mbps |
| Signal Rate | 2.4GHz: up to 400 Mbps
5GHz: up to 867 Mbps
5GHz: up to 4804 Mbps |
| Bands | Tri-Band |
| Interface(s) | 1 x RJ45 for Gigabits BaseT for WAN
4 x RJ45 for Gigabits BaseT for LAN
1 x USB 2.0
1 x USB 3.1 Gen 1 |
| Wireless Standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax |
| Frequency | 2.4 GHz (1 band) / 5 GHz (2 bands) |
| Button(s) | WPS Button, Reset Button, Power Button |
| Power Supply | AC Input: 110V~240V(50~60Hz)
DC Output: 19 V with max. 1.75 A current |
| Antenna(s) | Internal antenna x 2
External antenna x 4 |
| Dimensions (W x D x H) | 15.5 x 15.5 x 5.26 ~ cm (WxDxH) (Without Bezel) |
| Wireless Functions | Wireless router mode
Access point mode
Media bridge mode |
| VPN Support | IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client |
| Security | WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support |
| Port Forwarding | Yes |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| Management | UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log |
| Advanced Features | AiCloud
Printer server
Download Master
disk
Multiple SSIDs
Parental Control |
| Package Type | Retail |
| Package Weight | 0.0000 kg |
| Warranty | 3 Years |

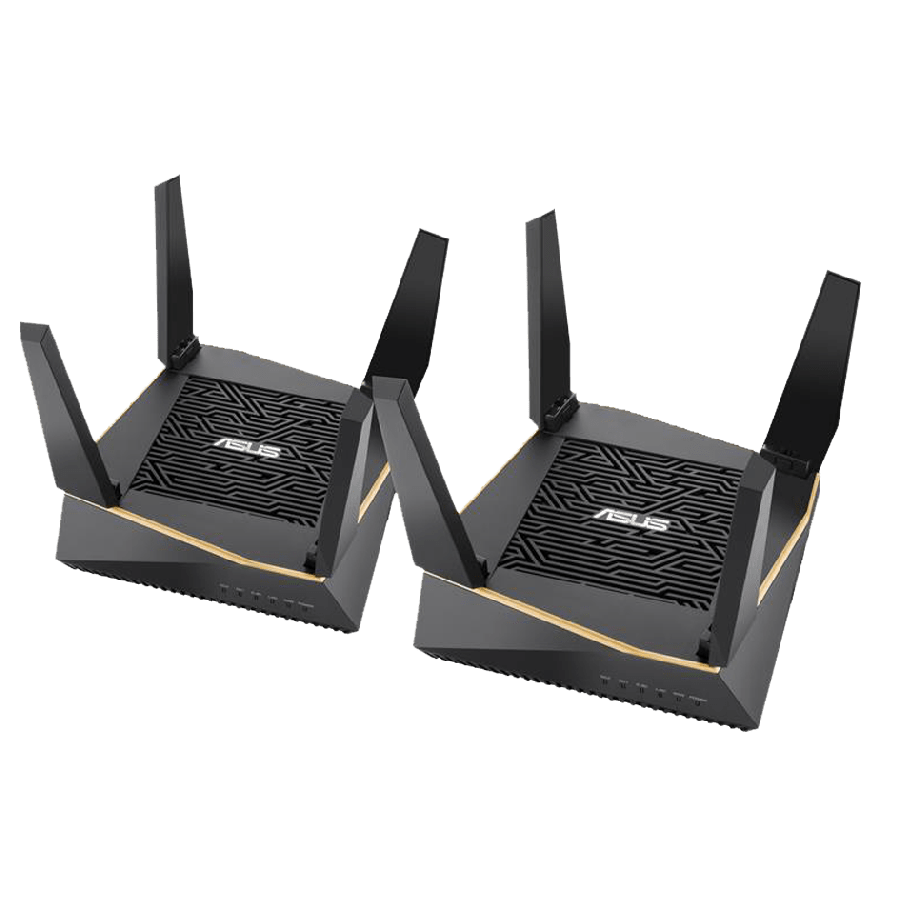

AX6100 Tri-Band whole-home mesh wifi system for large and multi-story homes supports flexible SSID setting, wired inter-router connections, AiProtection Pro network security powered by Trend Micro
- The most powerful mesh system — AiMesh technology allows you to establish an even stronger WiFi system with 802.11ax technology as wireless backhaul to transmit data between two RT-AX92U, ensuring the most stable possible WiFi for connected devices.
- AX technology — With OFDMA and MU-MIMO, AiMesh AX6100 WiFi System enables more efficient, stable, and faster transmission even when multiple devices are transmitting data at the same time.
- Flexible WiFi for connected devices — AiMesh AX6100 WiFi System comes with 802.11n, ac and ax bands, which provides channels for all kinds of devices, including legacy or cutting-edge devices.
- Commercial-grade network security for family — AiProtection Pro protects all the connected devices on your home network and advanced parental controls allow you to manage the family's internet usage.
World's First WiFi 6 (802.11ax) Mesh System
Extremely Stable & Ultrafast Connection throughout Your Home
Whole-home Coverage up to 5,500 sq. ft.
ASUS AiMesh AX6100 WiFi System is the world's first mesh system featuring the next-gen WiFi standard - 802.11ax (or WiFi 6) to deliver extremely stable WiFi to every corner of home. The 2-pack design utilizes 802.11ax WiFi (WiFi 6) as the backbone connection between the two RT-AX92U routers, transferring data on the fastest ever WiFi speeds up to 4804 Mbps*, ensuring every connected device enjoys the best possible speed from you ISP for smooth 4K streaming, online gamine simultaneously.
Seamless Connection Working with Your Current ASUS Router
ASUS proprietary technology – AiMesh allows RT-AX92U 2-Pack to work with any compatible routers to turn your home WiFi into the latest mesh WiFi system. All the AiMesh routers talk to each other and keep an eye on the signal strength to your device, and switch it seamlessly to another source if necessary. All you have to do is enjoy it!
Find the Best Place for All Devices
In addition to 802.11ax (WiFi 6) networking, AiMesh AX6100 WiFi System offers 802.11n (WiFi 4) and 802.11ac (WiFi 5) connections to provide flexible WiFi that supports everything from legacy to future cutting-edge devices.
It's also designed to work best with the latest generation of mobile devices featuring 802.11ax (WiFi 6) coming out in the near future. The 802.11ax WiFi used between RT-AX92U routers can be accessed by the new device so you can make the most use of your latest gadget's WiFi ability.
Flexible Choice between Wireless and Wired Backhaul Connection
Ethernet backhaul function allows you to use network cables to connect two RT-AX92U routers together. If you have on-wall Ethernet ports in different rooms of your home, this feature lets your routers communicate with one another over a wired connection, making your WiFi system even more stable and reliable. It also reserves all the three WiFi bands for your wireless devices, giving them even more network capacity.
Get Your Home Ready for WiFi 6 (802.11ax)Ultra-fast WiFi Speed
AiMesh AX6100 WiFi System consists two RT-AX92U routers with 4x4 tri-band Wi-Fi that provides 160MHz* bandwidth and 1024-QAM* for dramatically faster wireless connections. With a total networking speed of about 4804Mbps on the 5GHz-2 band, RT-AX92U 2-Pack is 2.7X faster than normal 802.11ac 4x4 routers.
We utilize this 802.11ax speed to transfer data between two RT-AX92U routers, realizing the fastest WiFi speed before the compatible 11ax devices are available on the market. So you can enjoy the technology from the future now and still connect it with the latest 802.11ax devices when they come out in the near future.
Higher WiFi Capacity for Multiple Devices Simultaneously
With a revolutionary combination of OFDMA* and MU-MIMO* technology, 802.11ax (WiFi 6) technology provides up to 4X greater network capacity and efficiency in traffic-dense environments. Previous-generation 802.11ac (WiFi 5) Wi-Fi can only handle one device at a time on each network channel, which is an inefficient use of available bandwidth. OFDMA support in the 802.11ax Wi-Fi standard divides each channel into small sub-channels, allowing signals from multiple devices* to be bundled together and transmitted simultaneously, reducing latency for a smoother, more responsive Wi-Fi experience.
Longer Battery Life for Your Devices
Target Wake Time (TWT) allows AiMesh AX6100 WiFi System to schedule designated intervals for devices to transmit data. This allows them to sleep when there is no need to wait for a router signal, reducing power consumption by up to 7X for significantly improved battery life*.
*It requires 802.11ax-compatible devices to enjoy the benefits brought by 802.11ax WiFi standard. AiProtection Pro
Safer Internet for Your Family and Devices
All your family members, young or old, are exposed to the dangers of internet every single moment they're online. AiMesh AX6100 WiFi System includes AiProtection Pro powered by Trend Micro™ with automatic, regularly updated security signatures to protect your devices and personal data from internet threats. This strong security offers advanced parental controls, including the ability to block specific websites and mobile app types.
Thanks to AiMesh, this protection applies to all your connected devices, no matter which RT-AX92U router the device is connected to.
No Subscription Fee
Some routers only offer 3 years of protection, ASUS AiProtection has you covered for the life of your product
Protection Against Attacks
Intrusion Prevention System (IPS) blocks all common internet-based attacks.
Block Access to Malicious Websites
AiProtection uses Trend Micro's official database to identify and block known malicious sites, preventing infection even before you click.
Infection Detection and Blocking
Even if an already-infected device is connected to AiMesh AX6100 WiFi System (RT-AX92U 2-Pack), AiProtection prevents any personal data on the device from being compromised.
Advanced Parental Controls
Keep your kids safe when they explore the internet. The state-of-the-art parental controls in AiProtection integrate all the management functions you need in one place and the intuitive interface makes it super easy to view and apply security settings to all the devices owned by individual family members.*
Internet Activity Dashboard*
View each family member's internet activity on a clear graphical dashboard showing the peak time and what kind of content they are viewing. You can group devices that belong to your children to view aggregated data and apply scheduled block times and content filters with just a few taps.
Kid-Safe Preset*
Check the box when editing a device and profile, and the preset automatically applies filters for inappropriate content to all their devices.
Schedule Block Time
Reserve valuable family time or help your children develop responsible behavior by selecting scheduled time periods to block internet access on specific devices.
Content Filter*
Block specific categories of mobile apps and websites, and apply these settings to all devices belonging to individual family members. The advanced filtering integrates Trend Micro's Deep Packet Inspection (DPI) engine to filter not only by website URL, but also by the internet packets themselves, which means it filters content viewed not only in a web browser, but also within mobile apps on your devices.*
Double Boost Built for Low-ping Gaming
AiMesh AX6100 WiFi System's Adaptive QoS prioritizes game packets for smoother online play. It also has built-in wtfast® to seek out and secure the shortest possible path between your gaming device and the game server, minimizing game ping and lag*.
*The free router edition supports one selectable device on your network at a time with GPN traffic limits, and includes wtfast® technical support.
Users can pay to upgrade to the advanced version for simultaneous acceleration of multiple devices with more GPN traffic and advanced features.
Easy Setup with Few Taps
Set Up the Primary RT-AX92U
Pick either of the RT-AX92U router and connect it to your internet connection and follow the guidance in app/browser to finish setup process.
Search for the Other One
Find the proper place and turn on the second RT-AX92U, click 'Search' in ASUSWRT or the ASUS Router app of the first RT-AX92U to find it.
Finish Pairing and Done
Select the second RT-AX92U and follow the instrucitons.
