Product Details:
Type
| Desktop |
| Socket | AM4 |
| Chipset | AMD X570 |
| Maximum Memory | 128GB |
RAM Speed
| 3rd Gen Ryzen CPUs:
4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.) /3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.) /3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz
2nd Gen Ryzen CPUs:
3600(O.C.)/3400(O.C.)/3200(O.C.)/3000 (O.C.)/2800(O.C.)/2666/2400/2133 MHz
2nd and 1st Gen Ryzen CPUs:
3200(O.C.)/3000(O.C.)/2800(O.C.) 2666/2400/2133 MHz |
| Memory Type | DDR4 (Dual Channel) |
| Storage | 8 x SATA III
2 x M.2 (2242/2260/2280/22110) - SATA & PCIe |
| PCI Express | PCI Express: Ryzen 3rd Gen CPUs 1 x PCIe 4.0 x16 (x16 mode)
Ryzen 2nd Gen CPUs:
1 x PCIe 3.0 x16 (x16 mode)
Ryzen 1st/2nd Gen CPUs:
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x16 (max at x4 mode)
3 x PCIe 4.0 x1 |
| Graphics | MD Radeon Vega Series Graphics in Ryzen Series APU |
| Multi GPU Supports | Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
Supports AMD 2-Way CrossFireX Technology |
| Graphics Port | 1 x HDMI
1 x DisplayPort |
Audio
| Realtek ALC S1200A 8-Channel High Definition Audio CODEC |
| USB Port Supports | 1 x USB 3.2 Gen2 Type-C (at back)
6 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 (at mid-board)
4 x USB 2.0 (at mid-board)
1 x USB 3.2 Gen2 Type-C Front Panel Header |
| Internal I/O connectors | 2 x Aura RGB Strip
1 x Addressable Gen 2
2 x USB 2.0
2 x M.2
1 x SPI TPM
8 x SATA 6Gb/s
1 x CPU Fan
1 x CPU OPT Fan
3 x Chassis Fan
1 x AIO_PUMP
1 x 24-pin EATX
1 x 8-pin ATX 12V
1 x 4-pin ATX 12V
1 x Front audio
1 x System panel
1 x Clear CMOS jumper
1 x COM port
1 x USB 3.2 Gen 1 |
| Back Panel I/o Ports | 1 x PS/2 keyboard/mouse
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45)
1 x Optical S/PDIF out
5 x Audio jacks
4 x USB 3.2 Gen 1
3 x USB 3.2 Gen 2 |
| LAN | GB LAN |
| Accessories | User manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s) |
| Warranty | 3 Years |
| Condition | New |

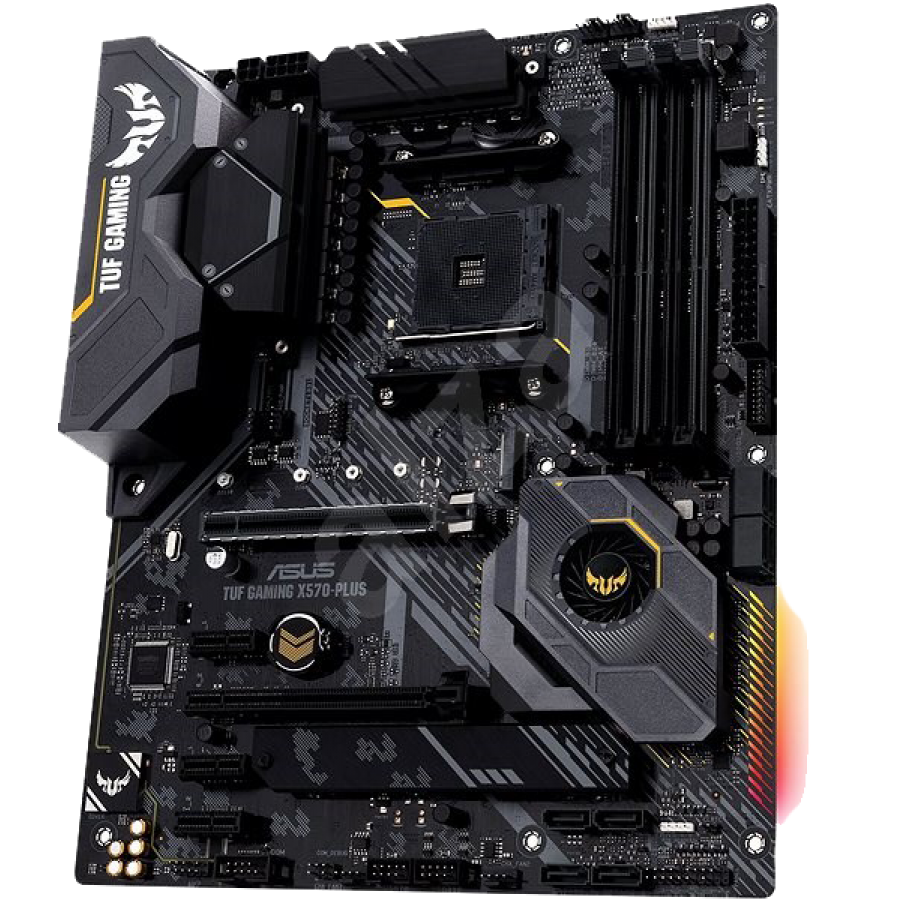

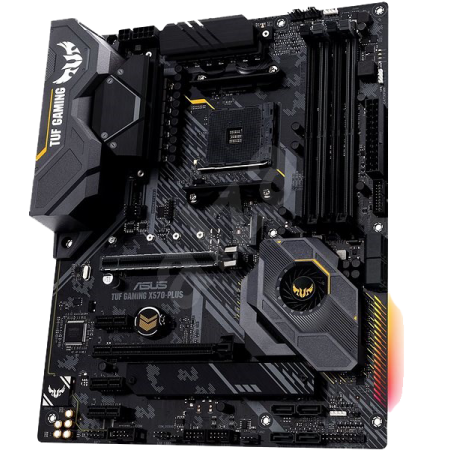

TUF Gaming X570-Plus distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
Rock-Solid Performance
With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF Gaming X570-Plus is the perfect foundation for your next high-core-count AMD battle rig.
Power
Driver & Mosfet
TUF Gaming X570-Plus' CPU VRM utilizes 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.
6-Layer PCB
Multiple PCB layers shift heat away from critical components, providing more headroom to push your CPUs beyond stock speeds.
Power Connector
Compared with traditional power inputs, ProCool sockets are built to tight specifications to ensure flush contact with the PSU power lines. This lowers impedance, which helps to prevent hotspots and connector failure.
TUF Components
TUF Chokes
Certified military-grade TUF chokes deliver rock-steady power to the CPU, helping to improve system stability.
TUF Capacitors
+20% temperature tolerance and 5X-longer lifespan.
DIGI + VRM
The Digi+ VRM voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and ultra-clean power delivery to the CPU at all times.
Cooling
Cooler by Design
VRM Heatsink
Large, high-mass heatsink with extensive surface that covers the VRM and choke areas.
Thermal Pad
High-quality thermal pads help transfer heat from the inductor and phase array to the heatsink.
Active Chipset Heatsink
A chipset heatsink with a dedicated chipset fan ensures optimal cooling for more stable performance.
M.2 Heatsink
The M.2 heatsink keeps the M.2 SSD at the optimum operating temperature for consistent performance and reliability.
Active Chipset Heatsink Solutions
PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The TUF Gaming X570-Plus features an actively cooled heatsink to prevent throttling during sustained transfers.
Custom Delta Superflo Fan
The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan.
Air Duct
A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.
Finned Heatsink
The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.
Comprehensive Fan Controls
TUF Gaming X570-Plus features the most comprehensive fan controls ever, configurable via Fan Xpert 4 and our award-winning UEFI BIOS.
- Multiple temperature sources
- All-in-one water-cooling set
- 4-pin PWM/DC fan
- Smart protection
Dual PCIe 4.0 M.2
Dual PCIe 4.0 M.2 slots support up to type 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.
Asus Optimem
ASUS OptiMem memory trace layout unleashes the full performance potential of AMD's Infinity Fabric architecture by enabling higher memory frequencies and lower latencies.
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want, even for first-time builders. From the TUF Gaming Alliance ecosystem that makes compatibility and part-picking easy to a one-stop software portal for all your configurations, TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
Safe slot
SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
ESD Guards
ESD Guards prolong the life of components while preventing damage from electrostatic discharge, providing protection for up to +/- 10kV of air discharge and +/- 6kV of contact discharge - greatly surpassing the respective industry standards of +/- 6kV and +/- 4kV.
TUF Languard
TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, protecting the motherboard from lightning strikes and static electricity.
DRAM Protection
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.
Back I/O
TUF Gaming motherboards have a corrosion-resistant stainless-steel back I/O panel bonded with chromium oxide for a 3X longer lifespan than traditional panels. With this protective feature, TUF Gaming motherboards passed 72-hour salt fog testing, while other brands only passed 24-hour testing.
Armory Crate
Armoury Crate is a new software utility designed to give you centralized control of supported gaming products. From a single intuitive interface, Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects. The software also provides control of settings for a select and growing number of products, including keyboard and mouse preferences as well as laptop overclocking and fan speeds, making it easier to tune the look and feel of your system. Armoury Crate even features dedicated product registration and news areas to help you stay in touch with the gaming community.
TUF Gaming X570-Plus provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere
Exclusive Gigabit Ethernet
Experience ultra-fast gaming with the ASUS-exclusive Realtek L8200A Gigabit Ethernet. With performance and stability enhancements, the LAN is optimized for CPU-efficient, low-latency data transfers.
Turbo LAN
Turbo LAN with cFosSpeed traffic-shaping technology adds even more lag-reducing support and an intuitive user interface, so you'll reduce lag by up to 1.45X - with no expert knowledge. It even includes Game mode to prioritize game-related data transmissions, smoothing network operations every time you play!
Realtek S1200A Codec
Tuf Gaming Audio Cover
Effective shielding preserves the integrity of audio signals to ensure best quality.
Audio Enjoyment
Premium Japanese audio capacitors provide warm, natural, and immersive sound.
Exclusive S1200A Codec
Delivers an expansive soundstage and authorative dynamics.
Audio Shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.
Signal to Noise Ratio
TUF Gaming X570 series motherboards utilize a unique audio codec designed in close collaboration with Realtek - the Realtek S1200A. It also features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality.
Audio Effect
Hone your battle skills with exclusive DTS Custom onboard audio. Utilizing advanced emulation techniques to create positional cues via stereo headphones, DTS Custom takes onboard audio to a new frontier. With three presets Aerial, Soundscape, and Tactical for different genres, you'll have a distinct advantage in every game.
Aerial Mode
Experience audio as though hovering above the game world, with sound coming from ahead - perfect for MOBA, RTA, strategy and sports titles!
Soundscape Mode
The ideal audio envelope for MMO, RPG, action and horror games - your ears will put you in the center of the action!
Tactical Mode
Shhh - is that an enemy just around the corner? DTS Custom emphasises detail for stealthy play, so you'll detect and locate every footstep!
The Power of AMD
AMD X570 Chipset
The AMD X570 chipset delivers outstanding overclocking capabilities for the latest AMD AM4 socket for 3rd and 2nd Gen AMD Ryzen /2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors. It is optimized for multiple GPU configurations, including NVIDIA SLI and AMD CrossFireX. It also supports x16 PCI Express 4.0/3.0 lanes and provides 10Gb/s USB 3.2 Gen 2 ports and 6 Gb/s SATA ports for faster data retrieval.
AMD A4 Socket for 3rd and 2nd Gen AMD Ryzen / 2nnd and 1st Gen AMD Ryzen with Radeon VEGA Graphics Processors
The high-performance 3rd Gen AMD Ryzen processors are based on the next-gen 7nm Zen architecture and support up to 16 processor cores. AMD AM4-socket processors feature dual-channel DDR4 memory, native 10Gb/s USB 3.2 Gen 2 and x16 PCI Express 4.0/3.0 lanes for superb performance.
