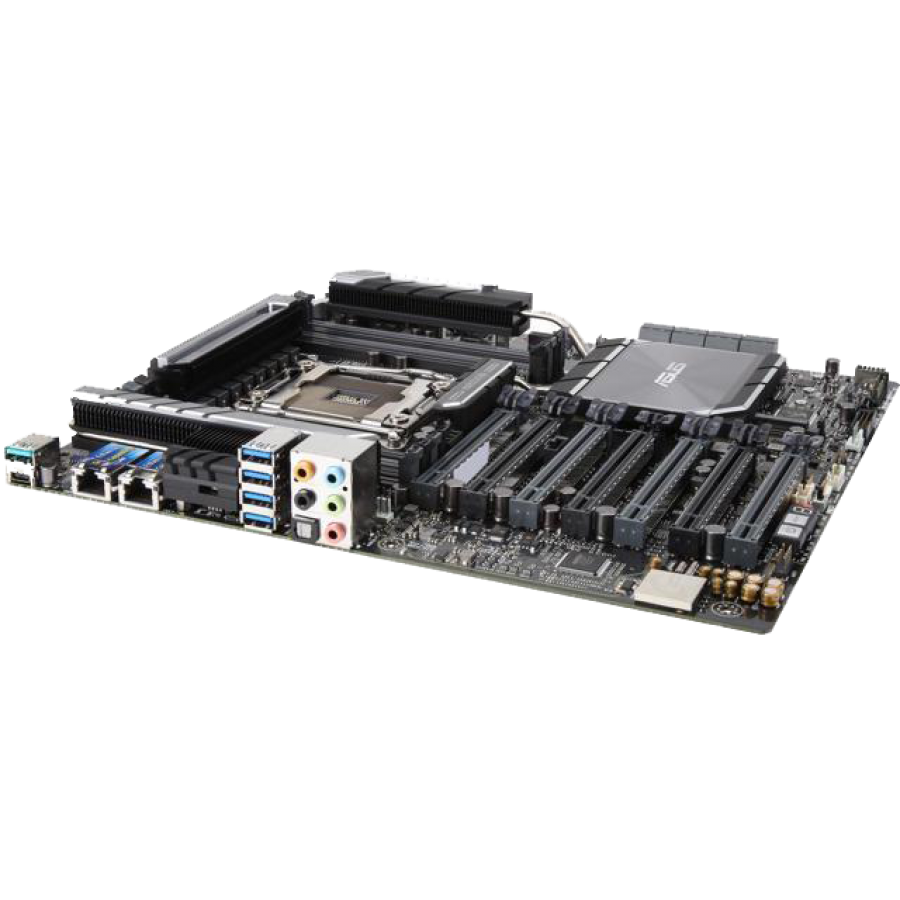

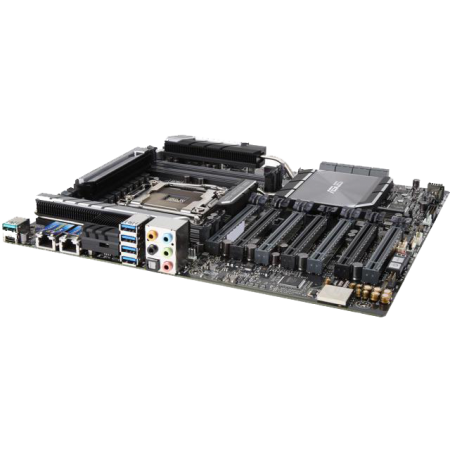

Asus X299-WS SAGE, Workstation, Intel X299, 2066, CEB, DDR4, 7 x PCIe, Dual M.2 & U.2, Dual LAN

  1. Home
  2. Asus X299-WS SAGE, Workstation, Intel X299, 2066, CEB, DDR4, 7 x PCIe, Dual M.2 & U.2, Dual LAN

  • Asus X299-WS SAGE, Workstation, Intel X299, 2066, CEB, DDR4, 7 x PCIe, Dual M.2 & U.2, Dual LAN

  • SKU: 90SW00H0-M0EAY0
  • EAN: 4712900853674
  • Type: Server / Workstation
  • Form Factor: CEB
  • Chipset: Intel X299
  • Maximum Memory: 128GB
  • Intel HD Graphics
  • 3 Years Warranty
$1,276.43
Out of Stock
    • SHARE:
    •
    •
    •
    •   TrustPilot
    WHY BUY WITH SAFEPCDIRECT ?
    Certificate 1
    Certificate 2
    Certificate 3
    Certificate 4

     Product Details :

    Type
    		Server / Workstation
    Socket2066
    ChipsetIntel X299
    Maximum Memory128GB DDR4
    RAM Speed
    		4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz
    Memory TypeDDR4 (Quad Channel)
    Storage8 x SATA III
    1 x M.2 Socket (2242/2260/2280/22110) - PCIe
    1 x M.2 Socket (2242/2260/2280) - PCIe
    2 x U.2
    GraphicsIntel HD Graphics
    Multi GPU SupportSupports NVIDIA 4-Way SLI Technology
    Supports AMD 4-Way CrossFireX Technology
    Graphics Port1 x VGA
    1 x HDMI
    1 x DisplayPort 1.2
    Audio
    		Realtek ALC S1220A 7.1-Channel High Definition Audio CODEC
    USB Port Supported

    2 x USB 3.1 Gen 2 , 8 x USB 3.1 Gen 1 ,4 x USB 2.0

    1 x USB 3.1 Gen 2 front panel connector ,

    Internal I/O connectors2 x U.2 port
    1 x AAFP
    1 x Aura RGB Strip
    1 x USB 3.1 Gen1
    2 x M.2 Socket 3
    1 x TPM
    1 x COM port
    8 x SATA
    1 x VROC_HW_Key
    1 x CPU Fan
    1 x CPU OPT Fan
    2 x Chassis Fan
    1 x AIO_PUMP
    1 x Thunderbolt
    1 x 24-pin EATX
    1 x 6-pin ATX
    2 x 8-pin ATX 12V
    1 x EZ XMP switch
    1 x 5-pin EXT_FAN
    1 x Water Pump
    1 x System panel
    1 x USB 3.1 Gen 2 front panel
    1 x CPU_OV jumper
    1 x M.2 Fan Header
    1 x Aura Addressable Strip Header
    Back Panel I/o Ports2 x LAN (RJ45)
    2 x USB 3.1 Gen 2
    6 x USB 3.1 Gen 1
    4 x USB 2.0
    1 x Optical S/PDIF out
    1 x USB BIOS Flashback Button
    1 x 8-channel Audio I/O
    PCL Express
    		2 x PCIe 3.0 x16 (x16 mode)
    2 x PCIe 3.0 x16 (Single at x16dual at x8/x8)
    1 x PCIe 3.0 x4 (x4 mode)
    LANDual GB LAN
    ButtonsClear CMOS , Reset , Power On
    Package Weight2.8000 kg
    AccessoriesASUS Q-Shield
    1 x Vertical M.2 brackets
    1 x COM port cable
    8 x SATA cables
    1 x M.2 screws
    1 x MOS Cooling kit
    3-Way & 4-Way SLI bridge
    1 x SLI HB BRIDGE
    1 x Q-Connector
    Warranty3 Years
    Condition New

    Intel LGA 2066 CEB motherboard with quad-strength graphics supports, DDR4 4133MHz, dual M.2 & U.2, USB 3.1 Gen 2 connectors, and ASUS Control Centre
    • 4-Way PCI-E Gen3 x16 link supporting NVidia GeForce SLI® and AMD CrossFireX™ on demand.
    • Ultra-efficient VRM heatsink: Metal fin array connected to large surface area via a heatpipe tames X299 thermals to enable unthrottled performance.
    • 5-Way Optimisation: One-click, system-wide tuning, delivers optimised overclocking and intelligent cooling for a diverse range of workloads.
    • Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI
    • ASUS Control Centre: A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses.
    • Next-gen transfer speeds: Up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Gen 2 Type-A and Type-C front connector
    ManufacturerAsus
    ColorNo
    Graphics ProcessorIntel
    Motherboard Form FactorCEB
    ChipsetIntel X299
    Motherboard TypeServer/Workstation
    Maximum Memory128GB
    Processor Socket2066
    RAM TechnologyDDR4 (Quad Channel)
    RAM Slots8 X DIMM
    ConditionBrand New
    RefurbishedNo
