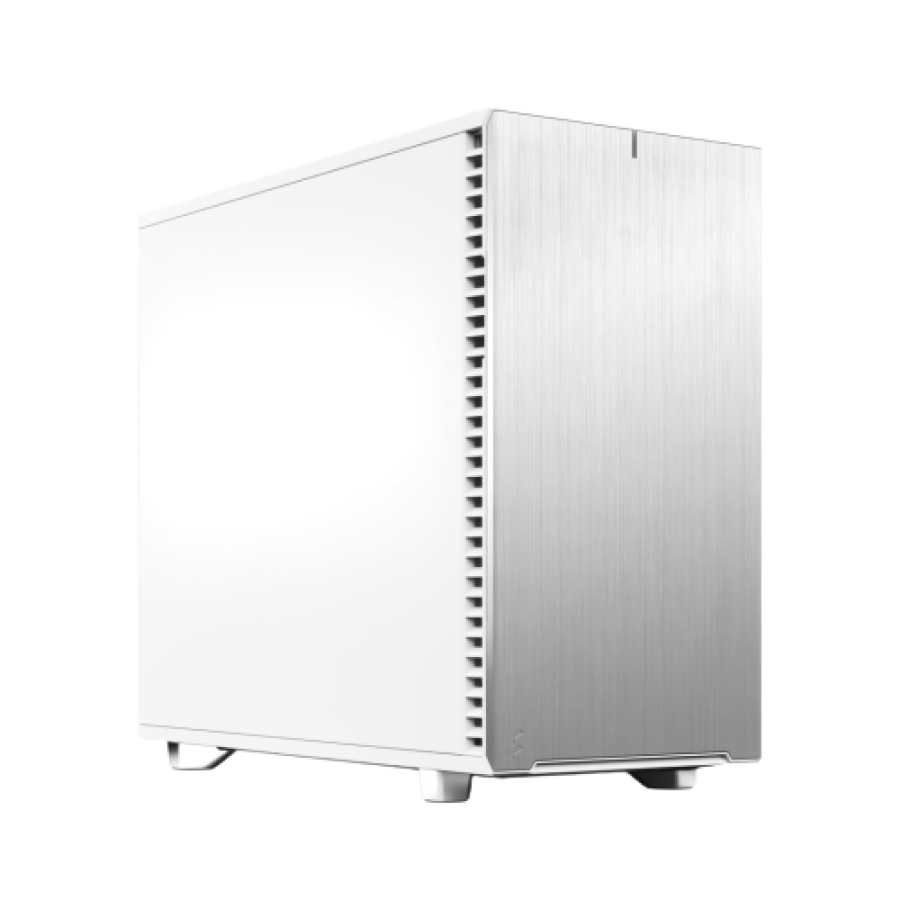

Fractal Design Define 7 (White Solid) Gaming Case, E-ATX, Multibracket, 3 Fans, Fan Hub, Silence-optimized, USB-C

  1. Home
  2. Components
  3. Fractal Design Define 7 (White Solid) Gaming Case, E-ATX, Multibracket, 3 Fans, Fan Hub, Silence-optimized, USB-C

  • Fractal Design Define 7 (White Solid) Gaming Case, E-ATX, Multibracket, 3 Fans, Fan Hub, Silence-optimized, USB-C

  • SKU: FD-C-DEF7A-09
  • EAN: 7340172702276
  • Form Factor: E-ATX
  • Power Supply Wattage: No PSU
  • Motherboard Support : E-ATX/ ATX/ Micro ATX/ Mini ITX
  • Expansion Slots : 7 + 2 Expansion slots
  • 2 Years warranty
$379.13
  • SHARE:
  •
  •
  •
  •   TrustPilot
WHY BUY WITH SAFEPCDIRECT ?
Certificate 1
Certificate 2
Certificate 3
Certificate 4

Related Products

Product Details

Form FactorE-ATX
Power Supply Wattage
No PSU
Motherboard Support
E-ATX (max 285 mm), ATX, Micro ATX, Mini ITX
Connectors / Controls
1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
2 x USB 2.0
Audio I/O
Power button
Reset button
Drive Bays3.5"/2.5" Universal brackets: 6 included, 14 positions total
Dedicated 2.5" brackets: 2 trays included, 4 positions total
5.25” mounts: 1
Expansion Slots
7 + 2 Expansion slots
Cooling System
Included
Front: 2 x Dynamic X2 GP-14 140mm fans
Rear: 1 x Dynamic X2 GP-14 140mm fan

Fan Mounts
Front: 3 x 120 / 140 mm
Top: 3 x 120 / 140 mm
Rear: 1 x 120 / 140 mm
Bottom: 2 x 120 / 140 mm

Water Cooling options:
Front: Up to 360 / 280 mm radiator
Top: Up to 360 / 420 mm radiator
Rear: 120 mm radiator
Bottom: Up to 240 / 280 mm radiator
ColourWhite
MaterialLeft side panel: Industrial sound-damped steel
Right side panel: Industrial sound-damped steel
CompatabilityGFX Card:
Storage layout: 315 mm
Open layout: 491 mm (467 mm w/ front fan)
Weight/Dimensions13.45 kg
(LxWxH) 547 x 240 x 475 mm
w/o feet/protrusions/screws: 533 x 240 x 451 mm
Package weight
16.4500 kg
Warranty2 year
ConditionBrand New



The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.


  • Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX
  • Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base in the default Open Layout
  • Convert to Storage Layout for up to 14 HDDs along with 4 dedicated SSD mounts and one ODD bay (6 HDD/SSD + 2 SSD brackets + 1 multi-bracket included)
  • The single 5.25” ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering
  • Silence-optimized construction with industrial sound-damped front, top, and side panels
  • Top panel effortlessly swaps from sound-damped solid steel to filtered ventilation

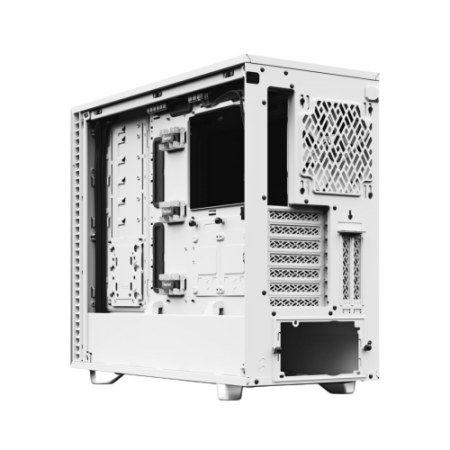

  • New chassis design opens up to fully expose the case interior for totally unhindered installation and cable routing

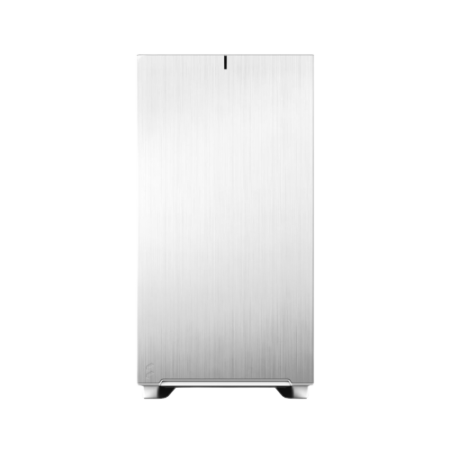

  • Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching
  • Outstanding cooling capacity with a total of 9 x 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
  • Versatile new multi-brackets convert any unused fan position to an HDD, SSD or pump mount
  • Two vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
  • Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
  • Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
  • Redesigned HDD cage for easier installation and improved transportation security
  • Tool-less, top-latching panels allow quick access while preventing accidental drops
  • Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
  • Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
  • Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
  • Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board

Open and interchangeable

Swap in the ventilated panel to add three filtered fan positions; remove the entire top to build and route with zero hindrance


Superior airflow by design

Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.

  • Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions
  • Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
  • The single 5.25” ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering

Open layout for massive headroom

You’ll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.

  • Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX
  • Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base

Superlative storage

Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts

  • 6 universal HDD/SSD brackets included with 14 positions total in Storage Layout
  • 2 dedicated SSD brackets included with 4 positions total
  • Versatile Multibracket converts any unused fan position to an HDD, SSD or pump mount
  • Sturdy new HDD cage design with vibration damped trays
ManufacturerFractal Design
ColorWhite
Drive Bays 3.5"5
Drive Bays 5.25"1
Case Form FactorE- ATX
Front PortsUSB
MaterialSteel
Supported Motherboard TypeEATX (82)
USB 2.0 Ports Qty2
ConditionBrand New
RefurbishedNo
