| Type | Access Point |
| Max Signal Rate | 867 Mbps |
| Dual Band | Yes |
| Interface(s) | 1 x Gigabit Ethernet (RJ-45) Port |
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Antenna | 3 Internal Omni
2.4GHz: 4dBi
5GHz: 5dBi |
| Power Consumption | EU: 10.5-Watts
US: 12.6-Watts |
| Button(s) | Reset |
| Power Supply | 802.3af PoE and passive PoE |
| Dimensions ( W x D x H ) | 205.5 x 181.5 x 37.1 mm |
| Weatherproof | No |
| Frequency | 2.4GHz and 5GHz |
| Wireless Security | Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support |
| Management | EAP Controller Software
Email Alerts
LED ON/OFF Control
Management MAC Access Control
v1,v2c SNMP
Local/Remote Syslog
Telnet
HTTP/HTTPS
L3 Management
Multi-site Management
Management VLAN |
| Environment (℃) | Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| Package Type | Retail |
| Package Weight | 0.9600 kg |
| Warranty | Limited Lifetime |

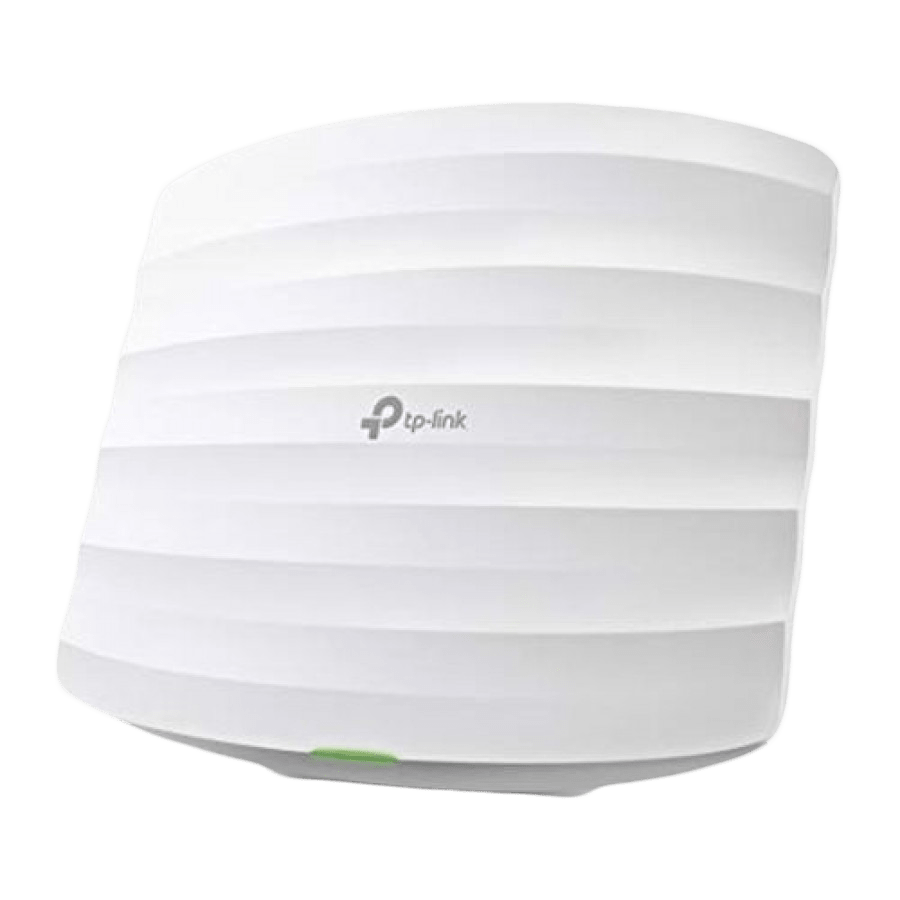

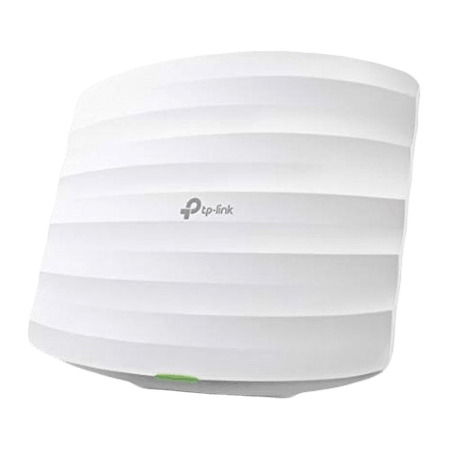

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
EAP225 V3
- Simultaneous 450Mbps on 2.4GHz and 867Mbps on 5GHz totals 1317Mbps Wi-Fi speeds
- Free EAP Controller Software lets administrators easily manage hundreds of EAPs
- Compatibility with 802.3af and Passive PoE support makes deployment effortless and flexible
- Captive portal provides a convenient method for guest authentication
- Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
- MU-MIMO means access points simultaneously transfer data with multiple devices, speeding up connections
- Beamforming concentrates signal towards where you need it most, providing a fast and stable Wi-Fi experience
- Supports management VLAN for an enhanced network management
- Schedules can be set so access points automatically reboot and Wi-Fi turns on/off at the times you choose
Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.
Easy for Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Omada Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.
Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation.
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.
Unified Wi-Fi for Multi-user Business Environment
The Omada business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It’s the perfect fit for motels, salons, chain-stores, schools, and restaurants.
Wireless Functions- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- Band Steering
- Load Balance
- MU-MIMO
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client
