TP-Link (MC210CS) Single-Mode Gigabit SC+ RJ45 Fiber Media Converter, up to 15km, Wave 1310nm

  1. Home
  2. TP-Link (MC210CS) Single-Mode Gigabit SC+ RJ45 Fiber Media Converter, up to 15km, Wave 1310nm

  • TP-Link (MC210CS) Single-Mode Gigabit SC+ RJ45 Fiber Media Converter, up to 15km, Wave 1310nm

  • SKU: CON-MC210CS
  • EAN: 6940000000000
  • Single-Mode Media Converter
  • Full Duplex Flow Control
  • 1 1000M SC port
  • IEEE 802.3ab
  • Warranty: Limited Lifetime
$44.98
Out of Stock
    • SHARE:
    •
    •
    •
    •   TrustPilot
    WHY BUY WITH SAFEPCDIRECT ?
    Certificate 1
    Certificate 2
    Certificate 3
    Certificate 4

    Related Products

    Highlights:

    • Complies with IEEE 802.3ab and IEEE 802.3z
    • Provides switch configuration of Force /Auto transfer mode for FX port
    • Extends fiber distance up to 15km

    What This Product Does

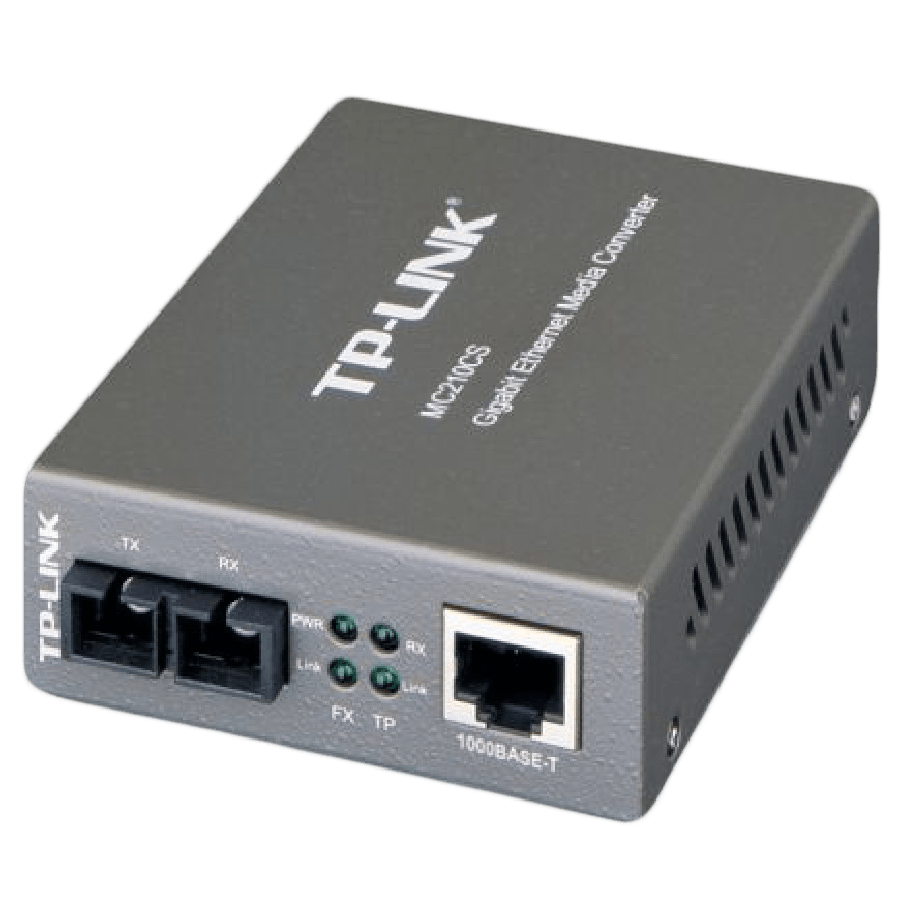

    The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.
    Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.
    TypeSingle-Mode Media Converter
    Enclosure TypeExternal
    Basic FunctionsFull Duplex Flow Control (IEEE 802.3x)
    Extends fiber distance up to 15km
    Ports1 1000M SC port
    1 1000M RJ45 port (Auto MDI/MDIX)
    Standards and ProtocolsIEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
    Wave Length1310nm
    Network Media 100BASE-FXUTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100 Ohms STP (maximum 100m)
    Network Media 1000BASE-TUTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100 Ohms STP (maximum 100m)
    Transmission Distance15km
    LED IndicatorsPWR, LINK, RX
    Dimensions (WxDxH)3.7 x 2.9 x 1.1 in. (94.5 x 73.0 x 27.0 mm)
    Power SupplyExternal Power Adapter
    Environment (℃)Operating Temperature: 0C~40C (32F~104F)
    Storage Temperature: -40C~70C (-40F~158F)
    Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
    Package Weight0.4800 kg
    WarrantyLimited Lifetime
    ManufacturerTP-LINK
    ColorNo
    ConnectivityWired
    ConditionBrand New
    RefurbishedNo
